Capacity: 2.0L | PI620 & PI650
Opening: 80 mm | Height: 230 mm
95kPa bio-bottle® | UN Specification
Description

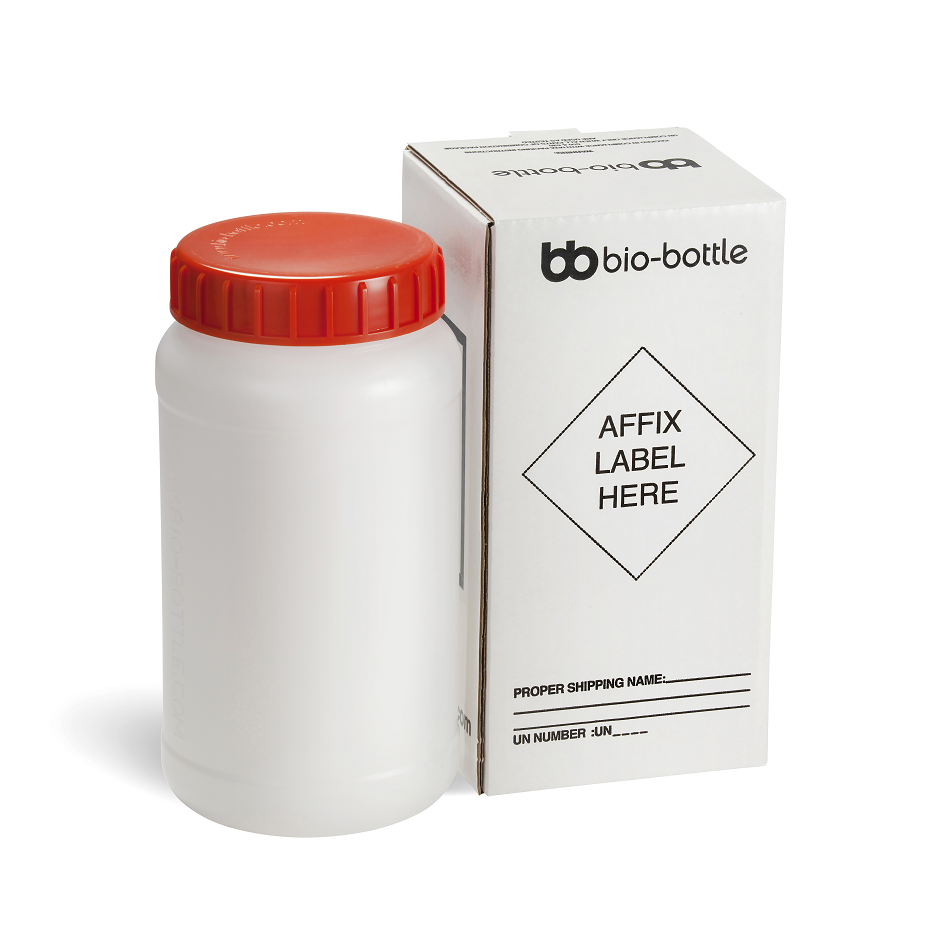

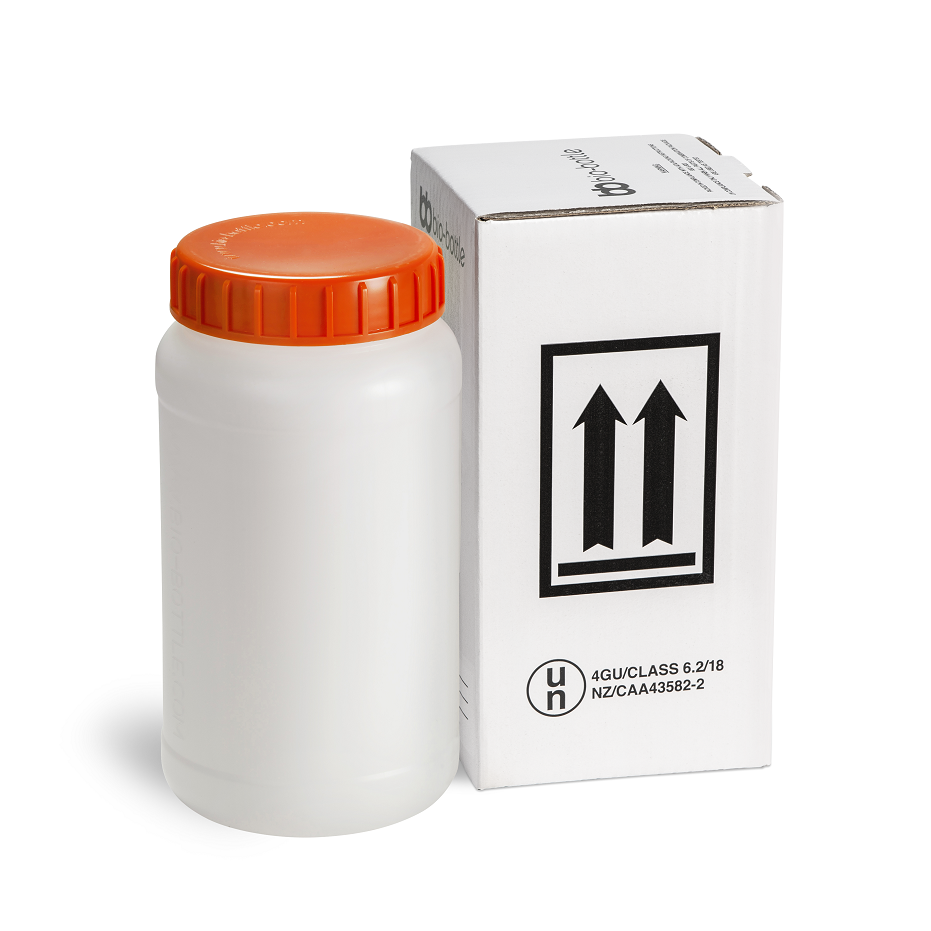

The Orange bio-bottle® complete is a combination package for the shipment of ambient infectious specimens and biological substances (Category A and Category B).
- Orange bio-bottle®: 95 kPa independantly tested and certified
- Rigid Outer Packaging: displays United Nations packaging specification marking 4GU/Class 6.2
- Meets IATA standards for Packing Instruction 620, applying to UN 2814 and UN 2900.
Designed specifically for use in accordance with the International Air Transport Association (IATA), Packaging Instruction 620, as part of a triple packaging system. This combination package includes the Orange bio-bottle®, a leakproof secondary packaging withstanding the differential pressure of 95 kPa.
To order this product please contact your local distributor here.
To become a distributor please contact us.
| Product Code | Product Description |
| OB1 | Orange bio-bottle® only |
| OX1 | Orange bio-bottle® carton only |

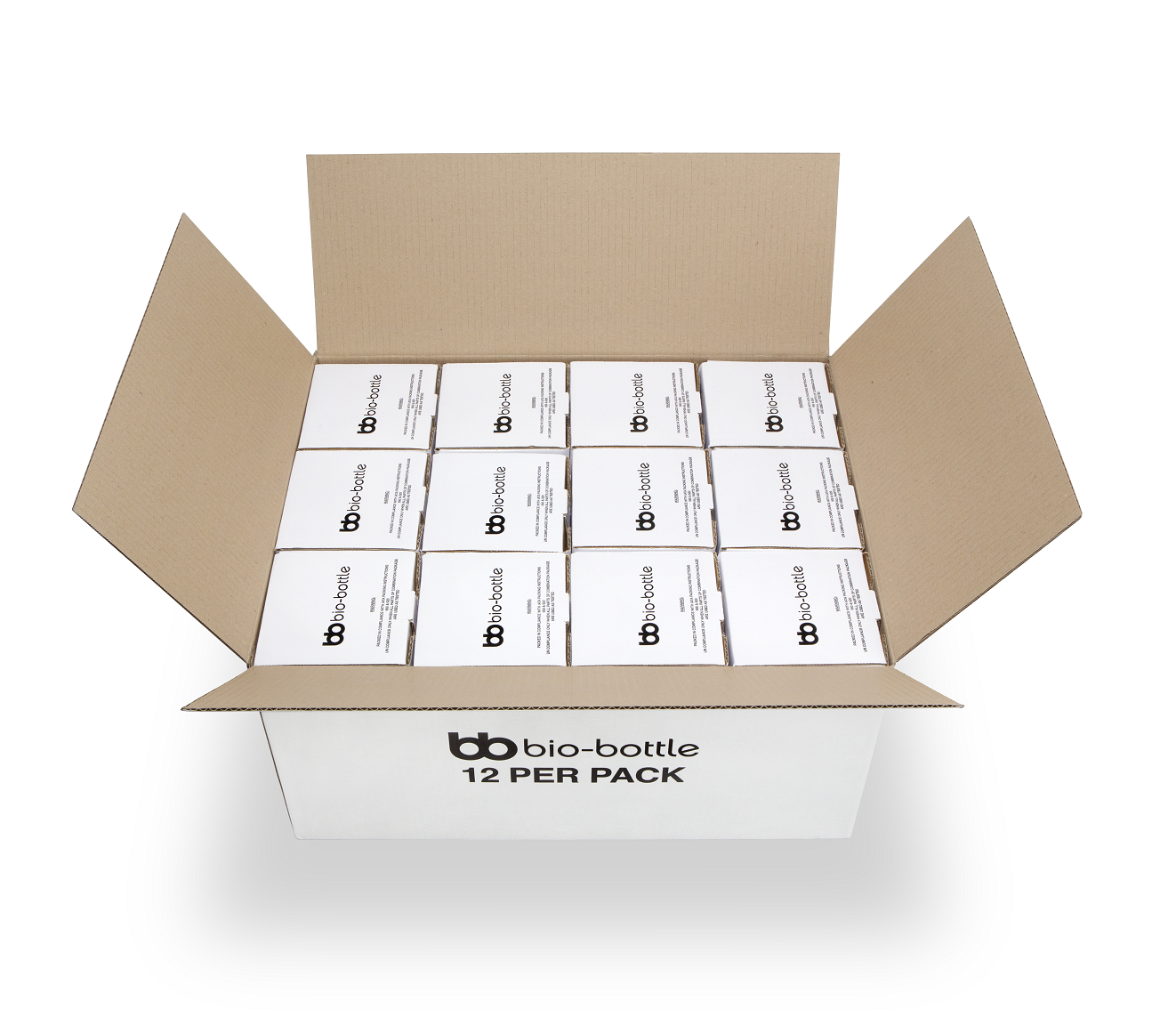

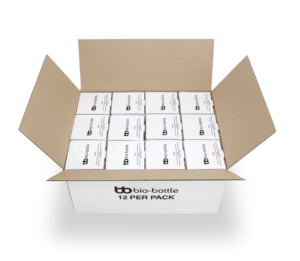

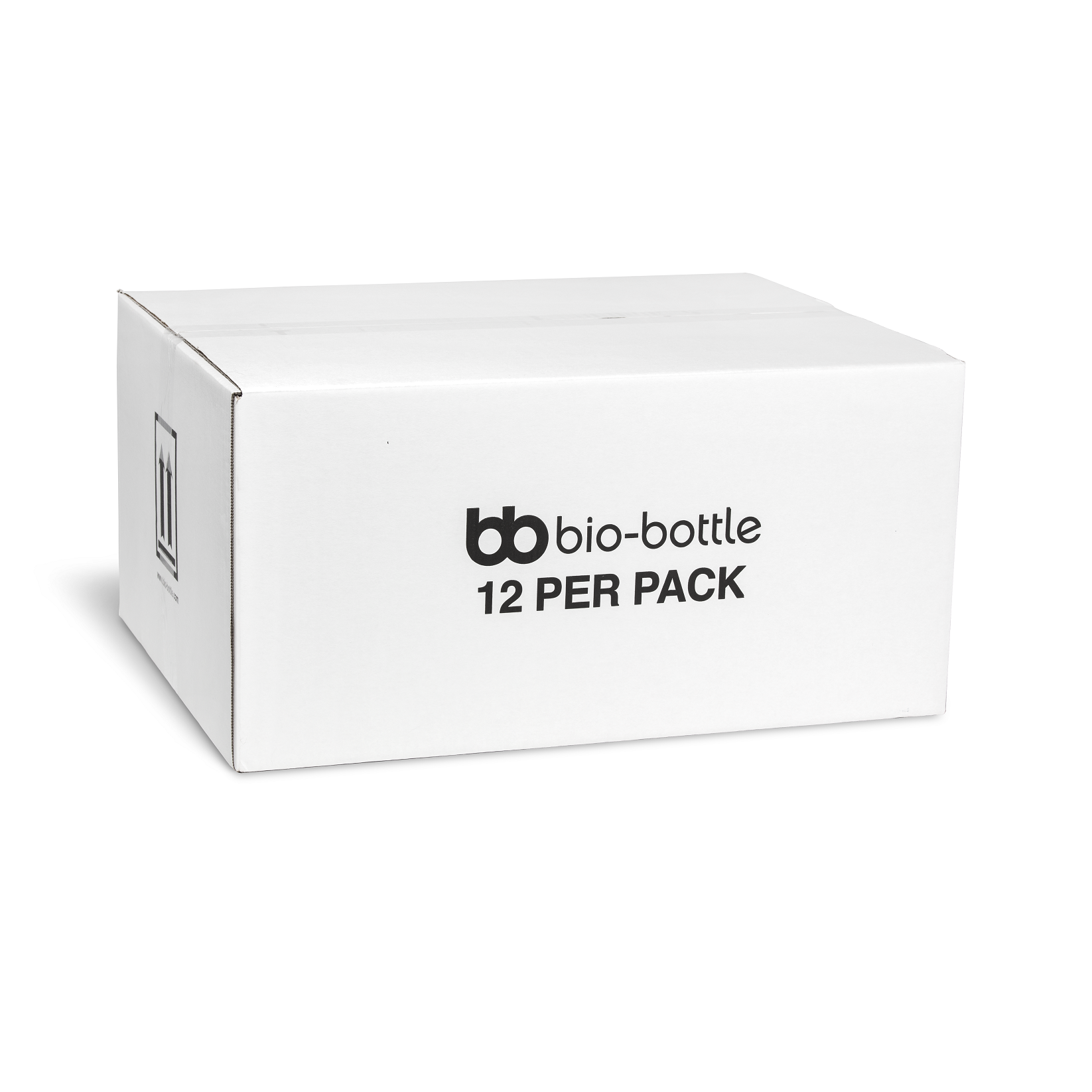

| OC12 | Orange bio-bottle® complete, 12 pack |
Specifications
Components:
- Fiberboard outer carton – 123 x 123 x 245 mm (Length x Width x Height)
- Orange bio-bottle® – 95 kPa independently tested and approved
- Capacity: 2.0 L
- Opening: 80 mm
- Diameter: 120 mm
- Height: 230 mm
- Weight: 0.24 kg
- Twin diagnostic label (Class 6.2 Infectious Substance and UN3373 labels)
- Bubble bag
- Absorbent pad
Markings on this fiberboard outer carton include:
- UN specification mark
- Proper shipping name
- UN number
- Shipper and Consignee address
- Emergency contact
- Permit number (if applicable)
- Orientation arrows
Complete weight of single assembled unit: 0.32 kg
Assembly: Assembled
Complete weight (12 units/ctn): 4.8 kg
Dimensions: 52 x 40 x 26 cm
Assembly: Assembled
Technical Information
UN Specification Mark: 4GU/Class 6.2
Country of Origin: New Zealand
Regulatory Agency: ICAO
Regulatory Standard: PI 620
Packaging Certification: Click here to contact our head office for copy of packaging certification.
Closure Instructions: Click here to view/download instructions.
Recycling Information
- Fiberboard outer carton – PAP #20
- Orange bio-bottle® jar only (without lid) – PE-HD #02
- Orange bio-bottle® lid – PE-HD #02 (Orange lid) and O #07 (Santoprene seal)
- Bubble Wrap – PE-LD #04
- Absorbent Pad – Dispose according to local regulations.
- Twin Diagnostic Label – Biodegradable (Label) / Dispose according to local regulations (Backing Paper)
